BX Series Long-range Background Suppression (BGS) Photoelectric Sensor

Name: BX Series Long-range Background Suppression (BGS) Photoelectric Sensor
Brand: DAIDISIKE
SKU: bx-series-long-range-background-suppression-photoelectric-sensor
Availability: InStock

Background suppression photoelectric sensor detecting up to 4 m from one side, no reflector needed.

BX Series Long-range Background Suppression (BGS) Photoelectric Sensor - product photo

🔍 Click to enlarge · 1/14

Technical Specifications

Model	BX-H4000NPN / BX-H4000PNP / BX-G2000 / BX-S2000
Output	NPN, switchable N.O./N.C. (white wire switches to N.C.)
Detection method	Long-range background suppression

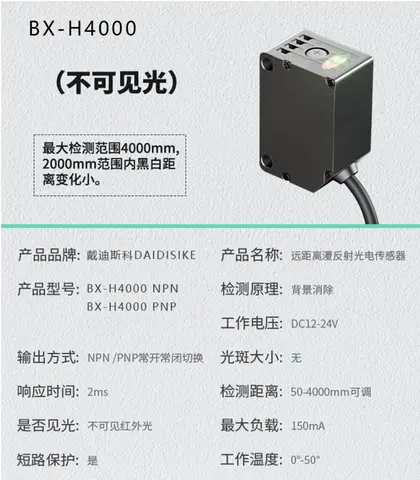

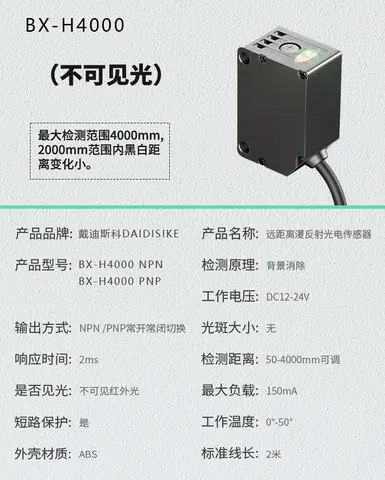

Detection range (BX-H4000)	Reflective type, 50-4000 mm adjustable

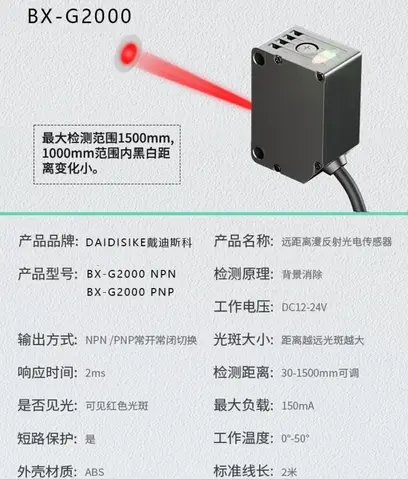

Detection range (BX-G2000)	Diffuse reflective, 30-2000 mm adjustable, wide visible-red LED spot

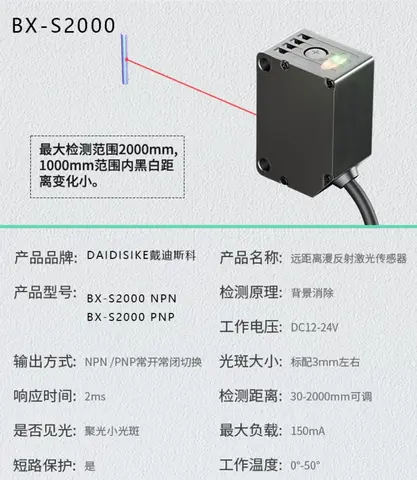

Detection range (BX-S2000)	Diffuse reflective, 30-2000 mm adjustable, laser small spot 2-3 mm visible red
Light source	BX-H4000: invisible infrared; BX-G2000: visible red; BX-S2000: visible laser red
Response time	2 ms
Load current (BX-H4000)	150 mA
Supply voltage	DC12-24V

Overview

BX is a background-suppression (BGS) photoelectric switch family covering two detection ranges - the BX-H4000 (adjustable 50-4000 mm, invisible infrared, retro-reflective-comparable range) and the BX-G2000 / BX-S2000 (adjustable 30-2000 mm diffuse reflective, LED wide spot or laser small spot).

BX-H4000 is available in NPN or PNP; BX-G2000/BX-S2000 are NPN (PNP unconfirmed), with switchable N.O./N.C. logic and 2 ms response time, running on DC12-24V. It is built for engineers who need reliable single-sided object detection at a distance where a standard diffuse sensor would lose reliability or need a reflector, but who cannot or prefer not to run wiring to an opposite-side receiver or mount a reflective target.

Features & Benefits

Background suppression at up to 4 meters from one side

The BX-H4000 covers a 50-4000 mm adjustable sensing range without a reflector or opposite-side receiver. The manual specifies minimal black/white distance variation within 2000 mm, meaning target color and reflectivity have little effect on the set point in that zone.

Three optical versions matched to different targets

BX-H4000 uses invisible infrared for maximum 4 m reach. BX-G2000 uses a wide visible-red LED spot suited to uneven or slightly shifting target surfaces and easy visual alignment. BX-S2000 uses a 2-3 mm visible laser spot for pinpoint accuracy at range.

2 ms response time across the series

All three BX models respond in 2 ms, suitable for detecting moving targets on conveyors and sorting lines without missed triggers.

Selectable N.O./N.C. output logic

Output logic (Light-ON/Dark-ON) is switchable via the white wire, so the same unit can be wired for either target-present-ON or target-present-OFF logic without ordering a different part.

Adjustable sensing distance on every model

Sensing range is field-adjustable across the full rated window - 50-4000 mm on H4000, 30-2000 mm on G2000/S2000 - letting the same sensor be set for different mounting distances on a line.

Applications

Pallet or unit-load presence detection on conveyor/AS-RS lanes — BX-H4000 covers 50-4000 mm, spanning roughly 0.05-4 m detection on conveyor and automated storage lanes with single-sided mounting, avoiding opposite-side wiring or reflector installation.

Single-sided detection where opposite-side wiring is impractical — The background suppression principle supports single-sided mounting for reliable long-range detection without running wiring to an opposite-side receiver.

Detecting targets with varying surface color or reflectivity within 2 m — The manual notes minimal black/white distance variation within this range, so the detection point is little affected by the target's reflectivity.

Bulky or large-package detection on logistics sorting lines — Long detection range combined with an adjustable sensing window suits larger targets and longer mounting distances on sorting lines.

Precision spot detection at a distance using a visible laser reference — BX-S2000 provides a 2-3 mm laser spot, combining long range with precise positioning at the detection point.

Alignment-friendly detection on uneven or slightly shifting targets — BX-G2000's wide spot is easier to align visually and tolerates small variations in target surface or position.

Fast-moving target detection on conveyor and sorting equipment — A 2 ms response time suits target capture at higher line speeds on conveyor and sorting equipment.

Models & Ordering Information

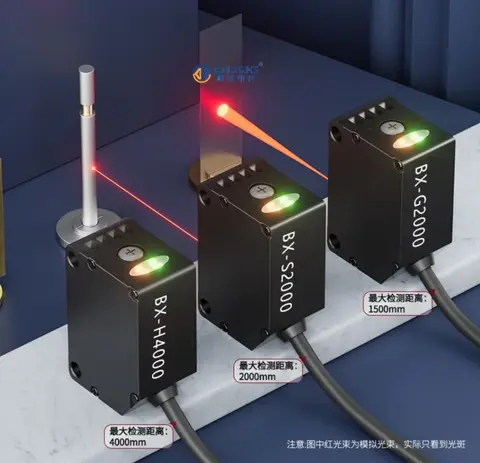

BX-H4000 - Background Suppression Reflective, 50-4000 mm

BX-H4000NPNBX-H4000PNP

Invisible infrared light, background suppression, 50-4000 mm adjustable range, minimal black/white distance variation within 2000 mm.

BX-G2000 - Diffuse Reflective, Wide Visible-Red Spot, 30-2000 mm

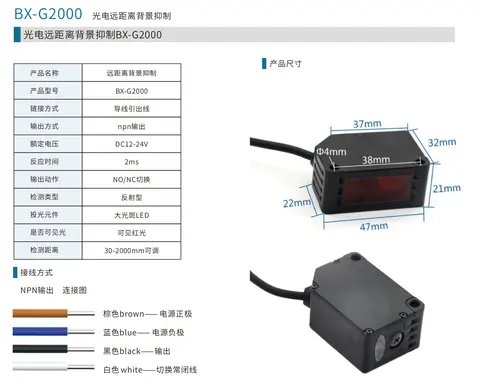

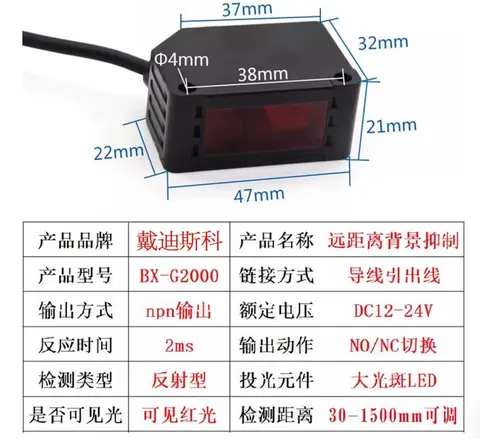

BX-G2000

LED wide visible-red spot, 30-2000 mm adjustable range.

BX-S2000 - Diffuse Reflective, Laser Spot, 30-2000 mm

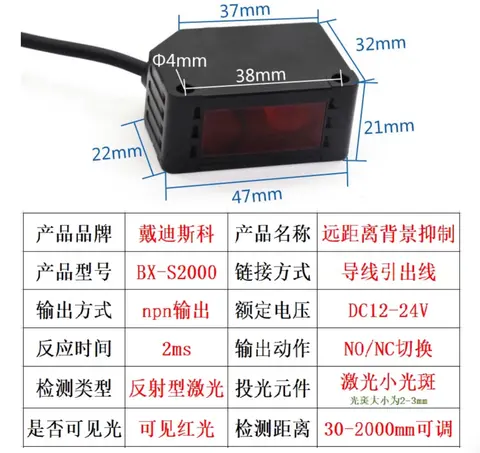

BX-S2000

Visible laser spot 2-3 mm, 30-2000 mm adjustable range.

How to Select

Need up to 4 m single-sided detection with no reflector: choose BX-H4000 (50-4000 mm adjustable).
Need up to 2 m diffuse detection: choose BX-G2000 or BX-S2000 (30-2000 mm adjustable).
Target surface is uneven or shifting and you want a visible alignment spot: choose BX-G2000 (wide visible-red spot).
Need pinpoint accuracy at range with a visible reference: choose BX-S2000 (2-3 mm laser spot).
Need maximum reach and don't need a visible beam: choose BX-H4000 (invisible IR).
All BX models are NPN output with N.O./N.C. switchable via the white wire, so confirm your controller's input type before wiring.
All models run on DC12-24V, so confirm your control cabinet's available DC rail matches before installation.
All three models share the same 2 ms response time, so choose based on range and optics rather than response speed.
