DDSK Laser Diffuse Reflective Sensor M12 / DK Laser Diffuse Reflective Sensor M18
M12/M18 threaded laser diffuse reflective sensor with a visible 650nm red laser for fast alignment.
🔍 Click to enlarge · 1/5Technical Specifications

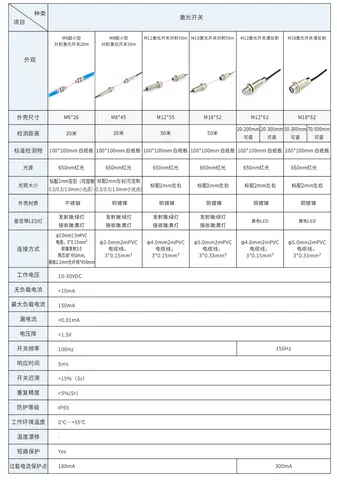

| Type | Laser diffuse reflective photoelectric switch |
|---|---|
| Light source | 650nm red laser |
| Detection method | Diffuse reflective |
| Detection distance | M12: 20-200mm / 20-300mm; M18: 50-300mm / 70-500mm |
| Output type | NPN / PNP; suffix 1 = normally-open NO (3-wire); suffix 2 = 4-wire (NO+NC) |
| Operating voltage | 10-30VDC |
| Thread size | M12 (DDSK) / M18 (DK) |
| Protection rating | IP65 |
Overview
The DDSK M12 and DK M18 are diffuse reflective (proximity-style) laser photoelectric switches: the sensor emits a 650nm visible red laser beam and detects the light reflected back from the target itself, without requiring a separate reflector or receiver unit. Housed in a threaded M12 (DDSK) or M18 (DK) barrel, they suit machine builders, panel integrators, and OEMs who need a single-point object-presence sensor that mounts quickly on standard threaded brackets and is easy to align visually thanks to the visible laser spot.
Each sensor is available in NPN or PNP transistor output, with either a 3-wire normally-open (NO) output or a 4-wire NO+NC output, on a 10-30VDC supply. The DDSK M12 series covers a 20-200mm or 20-300mm detection distance for compact, close-range mounting, while the DK M18 series extends to 50-300mm or 70-500mm for longer working distances.
Features & Benefits
Visible Laser Spot for Fast Alignment
The 650nm red laser is visible to the human eye, letting installers see exactly where the beam hits the target during mounting and adjustment, without needing an oscilloscope or indicator-only trial and error.
No Reflector Required
As a diffuse reflective sensor, it detects light reflected directly from the target surface, eliminating the extra reflector/mirror and the second mounting point that through-beam or retroreflective sensors require.
Two Threaded Body Sizes Covering Short to Mid-Range Detection
DDSK (M12) covers 20-200mm or 20-300mm detection distance for compact, close-range applications; DK (M18) extends to 50-300mm or 70-500mm for longer working distances, letting integrators match sensor size to the mounting envelope and range needed.
NPN and PNP Output Both Available
Every detection-distance/size combination is offered in both NPN and PNP transistor output, so the sensor can be wired into either sinking or sourcing PLC input cards without needing a separate interposing relay.
Simple 3-Wire or 4-Wire (NO+NC) Output Selection
Suffix "1" models give a straightforward 3-wire normally-open (NO) output for basic on/off detection; suffix "2" models add a 4-wire NO+NC output, giving both a normal and inverted signal from one sensor for redundant logic or fail-safe wiring without adding a second sensor.
Wide Supply Voltage Range
Operating on 10-30VDC, the sensor fits directly into common 12VDC and 24VDC industrial control power rails without a dedicated voltage regulator.
IP65-Rated Housing
The IP65 protection rating means the housing is dust-tight and protected against water jets from any direction, suiting use on dusty workshop floors or areas exposed to washdown/splash without a separate enclosure.
Threaded Barrel Design for Standard Mounting
The M12 (DDSK) and M18 (DK) cylindrical threaded body fits common photoelectric sensor mounting brackets and nuts already used across the machine-building industry, simplifying bracket sourcing and replacement.
Applications
Models & Ordering Information

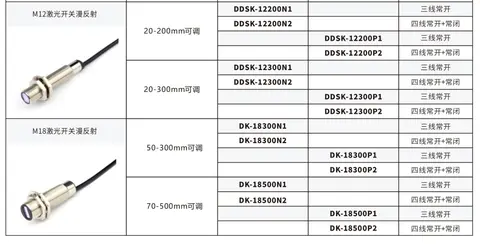

DDSK Diffuse Reflective M12 — 20-200mm Detection Distance
DDSK Diffuse Reflective M12 — 20-300mm Detection Distance
DK Diffuse Reflective M18 — 50-300mm Detection Distance
DK Diffuse Reflective M18 — 70-500mm Detection Distance
How to Select
- M12 thread (DDSK series) suits a more compact mounting space with a detection distance up to 300mm.
- M18 thread (DK series) suits applications needing a longer detection distance (up to 500mm) or an M18 mounting hole.
- DDSK-122xx (M12, 20-200mm) is the shortest-range option in this series.
- DDSK-123xx (M12, 20-300mm) is the longer-range option within the M12 body size.
- DK-183xx (M18, 50-300mm) is the shorter-range option within the M18 body size.
- DK-185xx (M18, 70-500mm) is the longest-range option in this series.
- Actual effective detection distance depends on the target's color, reflectivity, and surface material.
- Choose NPN if your PLC/controller input card is sinking-type; choose PNP if it is sourcing-type. In the model number, "N" denotes NPN and "P" denotes PNP (e.g., DDSK-12200N1 is NPN, DDSK-12200P1 is PNP).
- Choose suffix "1" (N1/P1) for a 3-wire normally-open (NO) output when basic on/off detection is enough.
- Choose suffix "2" (N2/P2) for a 4-wire NO+NC output when you need an inverted signal or redundant logic.
- Confirm your supply falls within 10-30VDC, which covers common 12VDC and 24VDC sources.
- If the mounting point is exposed to dust or washdown water jets, the IP65 rating already covers basic protection without an additional enclosure.
