D6.5 Series Inductive Proximity Sensors (Ultra-Short 18mm / Y-Type / 35mm / 45mm)
6.5mm-diameter inductive proximity sensors for tight-clearance mounting where M8 sensors won't fit.
🔍 Click to enlarge · 1/8Technical Specifications

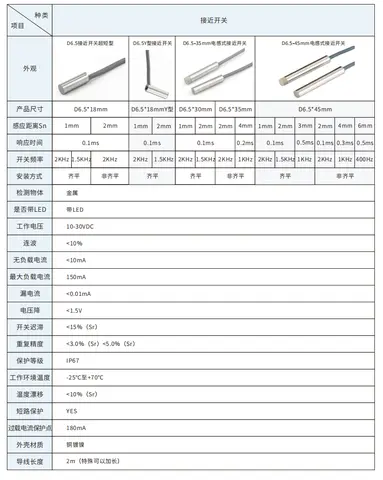

| Sensing Method | Inductive |
|---|---|
| Housing Diameter | D6.5 (cylindrical) |
| Body Length/Shape Options | Ultra-short 18mm / Y-type 18mm (right-angle) / 35mm / 45mm |
| Sensing Distance (Sn) | 1mm-2mm on 18mm/Y-type bodies; 1mm/2mm flush or 2mm/4mm non-flush on 35mm body; 1mm/2mm/3mm flush or 2mm/4mm/6mm non-flush on 45mm body |
| Mounting | Flush; T-suffix = non-flush (35mm/45mm bodies only) |
| Output Type | NPN / PNP, normally-open (NO) / normally-closed (NC) |
| Wiring | 3-wire (DC) |
| Operating Voltage | 10-30VDC |
| Detection Target | Metal |
| Response Time | 0.1ms typical (0.2ms on the 35mm 4mm non-flush model) |
| Switching Frequency | Up to 2KHz on shortest-range models, down to 400Hz on the 45mm 6mm non-flush model |
| No-Load Current | < 10mA |
| Max Load Current | 150mA |
| Leakage Current | < 0.01mA |
| Voltage Drop | < 1.5V |
| Ripple | < 10% |
| Switching Hysteresis | < 15% (Sr) |
| Repeatability | < 3.0% (Sr) / < 5.0% (Sr) |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Temperature Drift | < 10% (Sr) |
| Short-Circuit Protection | Yes, with 180mA overload current protection point |
| LED Indicator | Yes |
| Housing Material | Nickel-plated brass |
| Standard Cable Length | 2m (longer lengths available on special request) |
Overview
This is a series of small-diameter (D6.5mm) cylindrical inductive proximity sensors built for applications where a standard M8 or larger sensor will not physically fit. The series covers four body configurations: an ultra-short straight barrel (18mm long), a right-angle "Y-type" version (18mm sensing head with a bent cable exit for side-clearance mounting), and two longer straight barrels (35mm and 45mm) that include non-flush (T-suffix) variants for extended sensing distance.
Every model is a 3-wire DC device (10-30VDC) with a choice of NPN or PNP transistor output and NO or NC switching logic, plus a built-in LED for visual status indication. It is intended for machine builders and OEMs designing compact fixtures, small indexing mechanisms, and tight-clearance detection points — for example inside jigs, small rotary tables, or narrow frame members — where a larger-diameter sensor cannot be mounted.
Features & Benefits
6.5mm Barrel Diameter for Tight-Clearance Mounting
Fits installation points too narrow for standard M8/M12 threaded sensors, without requiring a custom bracket adapter.
Four Body-Length/Shape Options in One Naming System
Ultra-short 18mm, Y-type 18mm right-angle, 35mm, and 45mm body types let integrators pick the exact physical footprint a design needs — including a right-angle cable exit for side-clearance installs — while keeping the same model-numbering and wiring logic across the whole family.
Sensing Distance Graded 1mm to 6mm with Flush and Non-Flush Options
Flush-mount versions can be embedded in metal without false triggering; non-flush (T-suffix) versions on the 35mm/45mm bodies extend sensing distance up to 4mm and 6mm respectively for applications with more mounting clearance.
Selectable NPN or PNP, NO or NC Output
Every sensing-distance/mount combination is available in NPN or PNP transistor output, each with NO or NC switching, so it can be matched directly to the target PLC/control-circuit input type without an interposing relay.
Fast Response (0.1-0.2ms) and Switching Frequency up to 2kHz
Response time of 0.1ms (0.2ms on the 4mm non-flush 35mm variant) with switching frequency up to 2kHz on the shortest-range models supports detection of fast-moving small parts or high-speed indexing without missed triggers.
IP67 Protection with Nickel-Plated Brass Housing
The nickel-plated brass housing and IP67 rating let the sensor tolerate washdown, dust, and coolant/splash exposure typical of production-floor mounting points.
Built-In Short-Circuit Protection with a 180mA Overload Trip Point
Reduces the risk of sensor damage from output shorts or wiring mistakes during installation and maintenance in confined spaces where miswiring is more likely.
-25°C to +70°C Operating Range with LED Status Indication
Suits standard indoor machine environments plus cooler/warmer plant conditions, and the LED gives an at-a-glance on/off status check for commissioning and troubleshooting inside tight assemblies where a meter probe may be hard to reach.
Applications

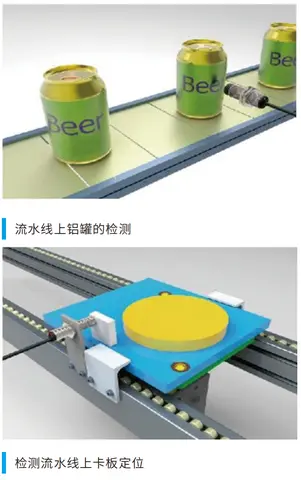

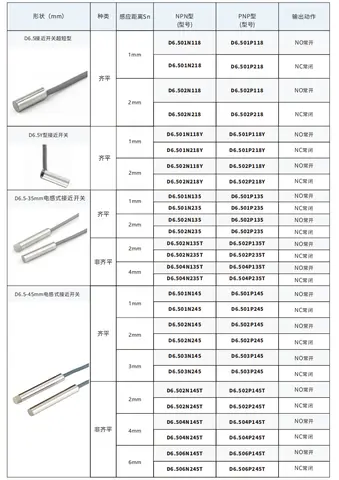

Models & Ordering Information
Ultra-Short 18mm (D6.5x18mm, Flush Mount)
Y-Type (D6.5x18mmY, Right-Angle Head, Flush Mount)
35mm (D6.5x30mm sensing head / 35mm overall)
45mm (D6.5x45mm)
How to Select
- Selection is driven by five variables encoded directly in the model number: body length/shape, sensing distance (Sn), output transistor type (N/P), switching logic (1/2), and mount type (flush / T-suffix non-flush).
- Ultra-short 18mm (straight, D6.5x18mm): most compact footprint, flush mount only, 1mm or 2mm sensing distance.
- Y-type 18mm (right-angle head with bent cable exit, D6.5x18mmY): same sensing distances as the ultra-short version, chosen when cable clearance requires a 90-degree exit instead of straight-out.
- 35mm (D6.5x30mm sensing head / 35mm overall): flush at 1mm/2mm, non-flush (T) at 2mm/4mm.
- 45mm (D6.5x45mm): flush at 1mm/2mm/3mm, non-flush (T) at 2mm/4mm/6mm — the widest sensing-distance range in the family.
- Flush (齐平) mount: sensor face can be embedded flush with surrounding metal without false triggering; available on all four body types.
- Non-flush (T-suffix) mount: only offered on the 35mm and 45mm bodies, and delivers longer sensing distance for the same body length, but the sensor needs a metal-free clearance zone around the sensing face.
- Choose output transistor type to match the sinking (NPN) or sourcing (PNP) input requirement of the target PLC/control circuit.
- Choose switching logic: suffix "1" for NO (signal on when target detected) or suffix "2" for NC (signal off when target detected).
- If line speed is high, check switching frequency: the shortest-range flush models switch fastest (up to 2kHz on 1mm ultra-short/Y-type/35mm/45mm models), while the longest-range non-flush 45mm model (6mm) switches at 400Hz.
- Model naming logic: D6.5 + detection-distance code (01/02/03/04/06) + N(NPN)/P(PNP) + 1(NO)/2(NC) + body length (18/35/45) + [T non-flush] + [Y right-angle] — e.g. D6.502N235T = D6.5 barrel, 2mm detection code, NPN, NC, 35mm body, non-flush mount.
📘 Need the full method? How to Choose a Proximity Sensor · NPN vs PNP Sensor Outputs Explained
When NOT to specify the D6.5 — and what to use instead
Detecting plastic, wood, liquid, or other non-metallic parts
Why not: This series is an inductive sensor with its detection target specified as Metal; it has no rated response to non-metallic targets.
Use instead: A capacitive proximity sensor series, which can detect non-metallic and liquid targets.
Application needs more than 6mm sensing distance
Why not: The widest sensing distance in this family is 6mm, and only on the 45mm non-flush (T-suffix) variant; the 18mm/Y-type bodies top out at 2mm.
Use instead: DAIDISIKE's economy M18/M30 inductive proximity sensors, rated up to 15mm sensing distance, or the JM-series M18/M30 connector sensors rated up to 40mm.
Need non-flush (extended-range) mounting on the ultra-short 18mm or Y-type body
Why not: Non-flush (T-suffix) mounting is offered only on the 35mm and 45mm bodies in this series; the 18mm and Y-type bodies are flush-mount only.
Use instead: The 35mm or 45mm D6.5 body when non-flush mounting and extra sensing distance are both required.
High-speed line needing faster than 2kHz switching
Why not: Switching frequency in this family tops out at 2kHz on the shortest-range flush models and falls to 400Hz on the 45mm 6mm non-flush variant.
Use instead: A photoelectric sensor, which typically supports higher switching frequencies for very fast small-part counting.
Panel wiring standardized on 2-wire DC or AC-powered proximity sensors
Why not: Every model in this series is a 3-wire DC device (10-30VDC); no 2-wire or AC-powered variant is listed for this series.
Use instead: Confirm 2-wire/AC availability directly with the factory before specifying, since this catalog line only lists 3-wire DC.
Machine-guard interlocking or any personnel-safety function
Why not: The spec sheet for this series lists no functional-safety or safety-rated certification.
Use instead: A dedicated safety-rated interlock switch or safety light curtain for guarding duty.
