JD Series 3-Wire Connector-Type Inductive Proximity Sensors D6.5-M8 / D6.5-M12

Name: JD Series 3-Wire Connector-Type Inductive Proximity Sensors D6.5-M8 / D6.5-M12
Brand: DAIDISIKE
SKU: jd-series-3-wire-connector-type-inductive-proximity
Availability: InStock

6.5mm-probe inductive proximity sensor with a factory-fitted M8/M12 connector for tool-free field replacement.

JD Series 3-Wire Connector-Type Inductive Proximity Sensors D6.5-M8 / D6.5-M12 - product photo

🔍 Click to enlarge · 1/10

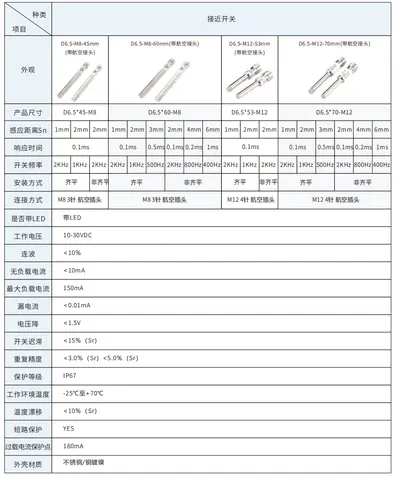

Technical Specifications

Sensing Method	Inductive
Probe Diameter	D6.5mm
Connector Type	3-wire circular connector, M8 (3-pin) or M12 (4-pin)
Body Length Options	45mm / 60mm (M8); 53mm / 70mm (M12)
Output Type	NPN / PNP, NO / NC
Mounting Type	Flush; T suffix = non-flush
Sensing Distance (Flush)	1mm / 2mm / 3mm
Sensing Distance (Non-Flush)	2mm / 4mm / 6mm
Operating Voltage	10-30VDC
Wiring	3-wire DC, circular connector
Max Load Current	150mA
Overload Current Protection Point	180mA
Short-Circuit Protection	Yes
Protection Rating	IP67
Operating Temperature	-25°C to +70°C
LED Indicator	Built-in, indicates switching state
Housing Material	Stainless steel with copper-nickel-plated section
Response Time	0.1ms to 1ms
Switching Frequency	400Hz to 2KHz

Overview

The JD Series is a connector-terminated variant of DAIDISIKE's D6.5 inductive proximity sensor family. Instead of a permanently attached cable, each sensor ends in an M8 (3-pin) or M12 (4-pin) circular connector, to which the customer attaches their own mating cable.

It is built for machine builders, panel integrators, and maintenance teams who need a small-diameter (6.5mm) inductive sensor in tight mounting spaces, but who also want the sensor itself to be a plug-and-play spare part, swappable on the machine floor without opening a junction box or re-terminating wires.

Features & Benefits

Field-replaceable without rewiring

The M8/M12 connector lets maintenance staff swap a failed sensor by unplugging the old unit and plugging in a new one, instead of cutting and re-terminating a fixed cable inside a panel or conduit.

Slim 6.5mm probe for confined installations

At just 6.5mm in outer diameter, the probe fits mounting holes and fixture spaces too tight for standard M8/M12-threaded sensors.

Both flush and non-flush mounting options

Flush versions can be mounted embedded in metal without interference from surrounding material; non-flush (T-suffix) versions offer a longer sensing distance where clearance around the probe is available.

Sensing distance up to 6mm on non-flush M8/M12 variants

The 60mm (M8) and 70mm (M12) length variants offer non-flush sensing distances of 2mm, 4mm, and 6mm, giving more detection margin than the flush versions.

Both NPN and PNP, NO and NC outputs available

Every length/distance variant is offered in NPN or PNP, normally-open (1) or normally-closed (2) output, matching either sinking or sourcing PLC input cards.

IP67-rated, wide-temperature 3-wire DC sensor

Rated IP67 with a -25°C to +70°C operating range, suitable for shop-floor environments with dust, splash, or washdown exposure.

Built-in short-circuit and overload protection

Rated with short-circuit protection and an overload current protection point of 180mA (max load current 150mA), reducing the risk of sensor damage from wiring faults.

LED status indication for fast diagnosis

All variants include a built-in LED that indicates switching state, letting technicians visually confirm sensor operation without a meter.

Applications

Machine-tool position/limit sensing in tight fixture space — The 6.5mm slim probe fits where standard-diameter threaded sensors cannot, thanks to the probe's compact D6.5 outer diameter.

Automated production lines needing fast sensor replacement — The connector interface avoids downtime for cable re-termination when a sensor needs swapping, thanks to the M8/M12 connector design.

Panel-built machinery where cables are pre-routed to a bulkhead connector — The sensor mates directly to a pre-installed cable/connector run instead of requiring the sensor's own fixed cable to be threaded through conduit.

Metal-embedded (flush) detection points on machine frames — Flush-mount variants are rated for installation surrounded by metal without triggering false detection, per the flush mounting spec.

Applications requiring extended sensing margin (up to 6mm) — Non-flush 60mm/70mm variants extend sensing distance to 4mm or 6mm where mounting clearance allows, per the selection table.

Sinking (NPN) or sourcing (PNP) PLC input systems — Both NPN and PNP outputs are available across the range, per the model naming convention.

Washdown or dusty shop-floor environments — IP67 protection rating supports exposure to dust and water jets, per the spec table.

Wide ambient-temperature installations (-25°C to +70°C) — The operating temperature range covers both cold and warm shop-floor conditions, per the spec table.

Models & Ordering Information

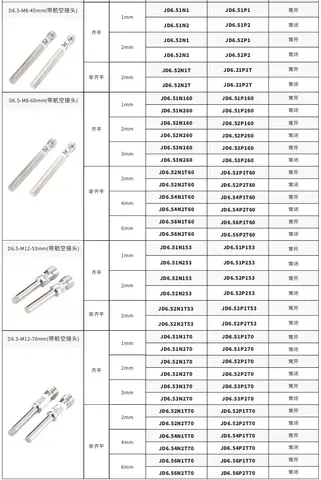

JD6.5-M8-45mm Basic (Flush Mount)

JD6.51N1JD6.51P1JD6.51N2JD6.51P2JD6.52N1JD6.52P1JD6.52N2JD6.52P2

M8 3-pin connector, 45mm body length, flush mount; sensing distance 1mm (JD6.51) or 2mm (JD6.52); N=NPN, P=PNP; 1=NO, 2=NC.

JD6.5-M8-45mm Non-Flush

JD6.52N1TJD6.52P1TJD6.52N2TJD6.52P2T

M8 3-pin connector, 45mm body length, non-flush mount (T suffix); 2mm sensing distance.

JD6.5-M8-60mm Extended Length (Flush / Non-Flush)

JD6.5X N(P) 1/2 60 (flush, e.g. JD6.51N160, JD6.53P260)JD6.5X N(P) 1/2 T 60 (non-flush, e.g. JD6.52P2T60, JD6.56N1T60)

M8 3-pin connector, 60mm body length. X = sensing-distance code (flush: 1/2/3mm; non-flush T: 2/4/6mm); N=NPN, P=PNP; 1=NO, 2=NC. The full model list is not itemized in the factory catalog; models follow this naming rule per the model list document.

JD6.5-M12-53mm (Flush / Non-Flush)

JD6.5X N(P) 1/2 53 (flush, e.g. JD6.51N153, JD6.52P253)JD6.5X N(P) 1/2 T 53 (non-flush, e.g. JD6.52N1T53)

M12 4-pin connector, 53mm body length. Flush: 1mm (JD6.51) or 2mm (JD6.52); non-flush (T): 2mm. The full model list is not itemized in the factory catalog; models follow this naming rule per the model list document.

JD6.5-M12-70mm Extended Length (Flush / Non-Flush)

JD6.5X N(P) 1/2 70 (flush, e.g. JD6.51N170, JD6.53P270)JD6.5X N(P) 1/2 T 70 (non-flush, e.g. JD6.52P2T70, JD6.56N1T70)

M12 4-pin connector, 70mm body length. X = sensing-distance code (flush: 1/2/3mm; non-flush T: 2/4/6mm); N=NPN, P=PNP; 1=NO, 2=NC. The full model list is not itemized in the factory catalog; models follow this naming rule per the model list document.

How to Select

Choose the connector/body size first: D6.5-M8-45mm (M8 3-pin, flush only, 1mm or 2mm sensing distance), D6.5-M8-60mm (M8 3-pin, flush 1/2/3mm or non-flush 2/4/6mm), D6.5-M12-53mm (M12 4-pin, flush 1mm or 2mm, or non-flush 2mm), or D6.5-M12-70mm (M12 4-pin, flush 1/2/3mm or non-flush 2/4/6mm).
Choose flush mounting (no T suffix) if the sensor will be embedded in metal with no clearance needed around the probe; choose non-flush mounting (T suffix) if clearance is available and a longer sensing distance is required.
Match the sensing-distance code in the model number to your required detection gap: flush variants offer 1mm, 2mm, or 3mm; non-flush variants offer 2mm, 4mm, or 6mm. A larger sensing distance tolerates more target-mounting variation but needs more non-magnetic-metal clearance around the probe.
Select NPN (N) or PNP (P) output to match whether your PLC input card is sinking or sourcing.
Select normally-open (1/NO) or normally-closed (2/NC) output to match whether the signal should activate when a target is present or absent.
Select body length based on installation space: standard lengths (45mm/53mm) suit limited-depth mounting, while extended lengths (60mm/70mm) provide access to the wider sensing-distance options (including 4mm and 6mm) or deeper mounting depths.
Confirm your supply and load: the JD Series operates on 10-30VDC with a maximum load current of 150mA, so verify your PLC or relay input current falls within this range.

📘 Need the full method? How to Choose a Proximity Sensor · NPN vs PNP Sensor Outputs Explained

When NOT to specify the JD — and what to use instead

Detecting plastic, wood, liquid, or other non-metallic parts

Why not: This is an inductive sensor built to detect metal targets; no non-metallic detection rating is listed.

Use instead: A capacitive proximity sensor series, which can detect non-metallic and liquid targets.

Application needs more than 6mm sensing distance

Why not: The maximum sensing distance across the JD series is 6mm, available only on non-flush 60mm (M8) / 70mm (M12) variants.

Use instead: The JM-series M18/M30 connector sensors, rated up to 40mm sensing distance.

Installation space shorter than the shortest available connector body (45mm for M8, 53mm for M12)

Why not: The shortest body length listed for this connector-terminated D6.5 line is 45mm (M8 connector) / 53mm (M12 connector); no shorter connector-terminated D6.5 length is offered.

Use instead: DAIDISIKE's cable-terminated D6.5 series (18mm ultra-short or Y-type body) if a fixed factory cable is acceptable in place of a connector.

Preference for a factory-terminated cable rather than a separate mating cordset

Why not: This series terminates in an M8 (3-pin) or M12 (4-pin) circular connector rather than a molded cable, so a separate mating cable/cordset must be sourced and wired.

Use instead: The standard D6.5 series, which is supplied with a factory-terminated 2m cable.

Driving a load current above the sensor's rated output directly

Why not: Maximum load current is rated at 150mA with a 180mA overload protection trip point.

Use instead: An interposing relay between the sensor output and higher-current loads such as contactor coils.

Machine-guard interlocking or any personnel-safety function

Why not: No functional-safety or safety-rated certification is listed for this series.

Use instead: A dedicated safety-rated interlock switch or safety light curtain for guarding duty.

Specifications we do not publish yet

We only publish a figure once we are confident it is true. The items below are still being validated through further testing and real-world customer feedback, so for now we would rather leave them open than guess. If one of them matters to your design, ask us for the latest validated status.

Exact SKU list for the 60mm/70mm body variants (the factory catalog does not itemize the full model list, only the naming rule)
Correction factor for non-ferrous (aluminum/brass/copper) targets versus the rated steel sensing distance
MTBF / expected service life
Connector pin-out assignment and matching cordset part number
Weld-field (weld-immune) suitability
Certification documents (stated as available on request, not published)

Frequently Asked Questions

What is the sensing distance of the JD Series proximity sensors?

Flush-mount variants offer 1mm, 2mm, or 3mm sensing distance depending on model; non-flush (T-suffix) variants offer 2mm, 4mm, or 6mm, per the manufacturer's selection table.

What connector does the JD Series use?

The D6.5-M8 variants (45mm and 60mm body) use an M8 3-pin circular connector; the D6.5-M12 variants (53mm and 70mm body) use an M12 4-pin circular connector.

Is the JD Series NPN or PNP?

Both are available. The model suffix N denotes NPN output and P denotes PNP output, with normally-open (suffix 1) or normally-closed (suffix 2) switching logic.

What is the operating voltage and maximum load current?

The sensor operates on 10-30VDC with a maximum load current of 150mA and an overload current protection point of 180mA, per the manufacturer's spec table.

What is the IP rating and operating temperature range?

The sensor is rated IP67 and operates from -25°C to +70°C, per the manufacturer's spec table.

What is the difference between flush and non-flush mounting?

Flush-mount versions can be installed embedded in metal without loss of sensing performance, but have a shorter sensing distance (1-3mm). Non-flush versions (T suffix) require non-metal clearance around the probe but achieve a longer sensing distance (2-6mm).

Does the sensor have a status indicator?

Yes, every JD Series variant includes a built-in LED that indicates switching state.

What is the sensor body material?

The housing is stainless steel with a copper-nickel-plated section, per the manufacturer's spec table.

Can the sensor cable be replaced without rewiring the whole sensor?

Yes. Because the sensor terminates in an M8 or M12 connector rather than a fixed cable, the mating cable (or the sensor itself) can be unplugged and replaced without cutting or re-terminating wiring.
